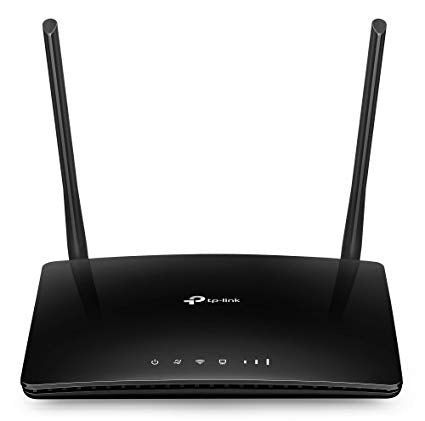

TP-LINK AC750 WIRELESS DUAL BAND 4G LITE ROUTER ARCHER MR200

Enjoy 4G Wireless Sharing Everywhere
AC750 Wireless Dual Band 4G LTE Router

Archer MR200

Got SIM Card?
Then Plug and Play!
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do insert a SIM card and turn on the Archer MR200. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.

Share Your 4G LTE Network
Take full advantage of your cutting-edge 4G LTE network with the Archer MR200, which allows you to share network with multiple devices so you can enjoy uninterrupted HD movies, rapid file downloads that won't freeze up. It is also fully compatible with FDD-LTE and TDD-LTE, which are supported by most operators around the world.

Internet Access for up to 64 Devices Simultaneously
The Archer MR200 can easily share a 3G/4G connection with up to 64 wireless devices like tablets, laptops and mobile phones at the same time. It can also provide internet access for desktop computers via the LAN ports.

Wi-Fi Where You Need It
The Archer MR200 offers unmatched convenience and versatility. The ability to quickly establish powerful wireless networks can be tremendously important. The Archer MR200 is the perfect solution whether you're at home or working in a remote location. Just plug it in to boost on-site productivity and stay connected in a diverse range of environments. From the exhibition center to the RV, the Archer MR200 has you covered.
Easy Management
Set up the Archer MR200 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control from any Android or iOS device. Control your home network whenever and wherever you are.
ARDWARE FEATURES
Interface 3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port, 1 SIM Card Slot
Button WPS/Reset Button, Wireless On/Off Button, Power On/Off Button
External Power Supply 12V/1A
Dimensions ( W x D x H ) 7.95 x 5.55 x 1.32 in. (202 x 141 x 33.6 mm)
Antenna 2 Internal 4G LTE Antennas,
2 Fixed External WiFi Antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency 2.4GHz and 5GHz
Signal Rate 300Mbps at 2.4GHz, 433Mbps at 5GHz
Reception Sensitivity 5GHz: 11a 54M: -74dBm
11ac HT20: -67dBm
11ac HT40: -64dBm
11ac HT80 : -60dBm
11n HT20: -71dBm
11n HT40: -70dBm

2.4G: 11g 54M: -76dBm
11n HT20: -73dBm
11n HT40: -67dBm
Transmit Power CE: <20dBm(2.4GHz), <23dBm(5GHz) Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions Network Type (V2) 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz) TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500MHz) 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz) 2G: EDGE/GPRS/GSM Quad Band (850/900/1800/1900MHz) Network Type (V3) 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz) TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500MHz) 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz) Network Type 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz) TDD-LTE B38/B40 (2600/2300MHz) 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz) 2G: EDGE/GPRS/GSM Quad Band (850/900/1800/1900MHz) SOFTWARE FEATURES Quality of Service Bandwidth Control Operating Modes 3G/4G Router, Wireless Router WAN Type Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) Management Access Control, Local Management, Remote Management, reboot schedule DHCP Server, Client, DHCP Client List, Address Reservation Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ Dynamic DNS DynDns, NO-IP VPN Pass-Through PPTP, L2TP, IPSec VPN PPTP VPN, IPSec VPN , OpenVPN Access Control Parental Control, Local Management Control Firewall Security DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding Protocols Supports IPv4 and IPv6 Guest Network 2.4GHz guest network x 1, 5GHz guest network x 1 IPSec VPN Supports up to 10 IPSec VPN tunnels OTHERS Certification CE, RoHS Package Contents AC750 Wireless Dual Band 4G LTE Router, Archer MR200 RJ45 Ethernet Cable Power Adapter Quick Installation Guide System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browsers or higher, or other Java-enabled browsers Micro SIM Card Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing For additional version information, please go to the support page.

AC750 Wireless Dual Band 4G LTE Router
Archer MR200
Shares your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150Mbps
Powerful, integrated antennas provide stable wireless connections and better coverage
Requires no configuration, just insert a SIM card and turn it on to enjoy a fast wireless connection
Creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300Mbps on the 2.4GHz band and 433Mbps on the 5GHz band
Offers options and flexibility with the LAN/WAN port, allowing you to choose your connection type
